Product Description

Features

1. Super long life: LED-UV lamp imported from Korea. Service life over 20000 hours, Our guaranty is 3 years or 10000 Hours.

2. The light source module is cooled by water cooling system. Stable and reliable effect.

3. Whatever by a long time working, heat is stable no more than 45C. The luminous chip with thermal protection and power-off if error. The working temperature over 45C will alarm.

4. We accept custom LED-UV cured machine according to various request like the light length, can be hand lift or conveyor belt.

5. No ozone and UVC rays, and no direct harm to operator.

6. Ultra low power consumption compared with the traditional UV curing machine, the power can save 5-20 times.

LED Lamp


Three line of lamp parallel alternation	Four line of lamp align parallel	Four line of lamp parallel alternation	Five line of lamp parallel alternation
L40mm*W25/set;150w	L32.5mm*W30mm/160w	L61mm*W40mm/320w	L45mm*W55mm/300w
Semiautomatic printer, for tint color or varnish.	Semiautomatic printer, for dark color.	Semiautomatic & Automatic printer, for dark color.	Automatic printer, for dark and thick

Specification:

Power supply	220v 50Hz
Light wavelength	395nm (accept customized)
Light length	Depend on the lamp
conveyor width	600mm	800mm	1000mm
Lamp power	Depend on the lamp	Depend on the lamp	Depend on the lamp
Shining way	Vertical light emitting chip
Cooling system	Water cooling
Conveyor Length/standard	165cm; 300cm; accept customized
Conveyor High	85cm

Applying with our company UV-LED screen printing ink is perfect match, our UV-LED ink including water transfer printing ink category, PET, PC and other plastic ink category, coated metal category, foil lamination category, etc. According to the different request of wave length of UV-LED, characteristics and requirements, We accept various specifications and different properties to be made to order. The UV-LED lamp with Three years and 10000H warranty.

Detailed Images

Regulator

Adjust the height accurately and cured ink fully

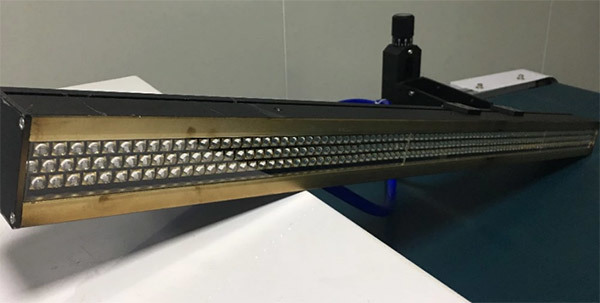

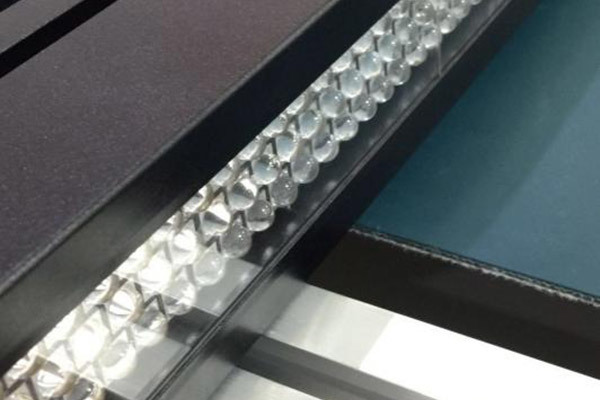

UV LED LG G4 lamp

Imported from or Korea . Service life over 20000 hours, compared with the traditional UV curing machine tube durable, section also replacement costs.

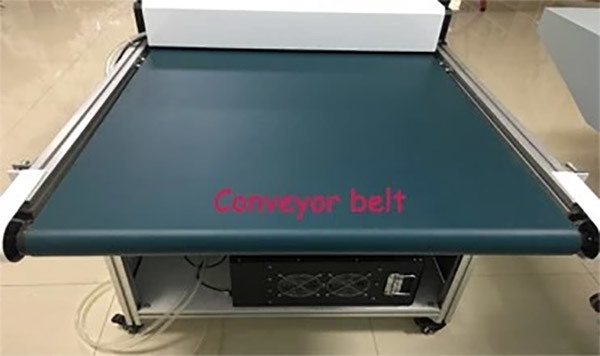

Conveyor belt

The conveyor belt is not deflected during transportation, and the heat dissipation is good.
