Product Description

Design according to the product request, such as paper, sheets with low UV temperature; colorful glass, cabinet doors and other high-intensity UV curing of inks penetration. Curing design makes different products to teach a better UV adhension effect.

2.Customize for different needs, like ice, wrinkles, scrub and other special effects.

3.Tow groups of 5.6kw lamp, both up and down have exhaust fan, power, the quantity of lamp and the belt width can be custom-made according to customer requirements.

Parameters

Model	YCCM600	YCCM800	YCCM1200
Total length	2500mm	3000mm	3000mm
Belt width	600mm	800mm	1200mm
Feeding width	800mm	1000mm	1400mm
Unloading width	800mm	1000mm	1400mm
Product height	0-200mm
Belt speed	0-40m/minute (control)
Lamp power	3/5.6/8/12KW for choose
Input voltage	380V 50Hz
Package	Wooden case
Warranty	one year’s warranty + lifelong maintenance
MOQ	1set
Payment Terms	T/T + L/C + Paypal + Alipay + Western Union
Delivery Time	15-20 days

Features

1.An instantaneous solidification and desiccation. Conveyer belt smooth and the speed is steplessly.

2.High quality Teflon belt that high temperature resistant, rub-resistant, and radiation resistant. It is able to couple with other production line.

3.UV lamps is able to control independently. Adopt the aluminum-magnesium alloy lampshade with gather light design. Be connect with our own suction/circular heat emission system, preventing the product out of shape bcz of the high temperature; prevent to move bcz of the air blowing in transit and the UV lamp burn out the product in working.

4.The Heat air go out of the workshop through heat rejection system. Don’t effect the workshop environment.

5.Suitable for : water transfer decal papers, normal papers, various pellicles, packing boxes, fabric, color crystal glass etc.

6.Depend on the character of the various product, our company accept the different specification order.

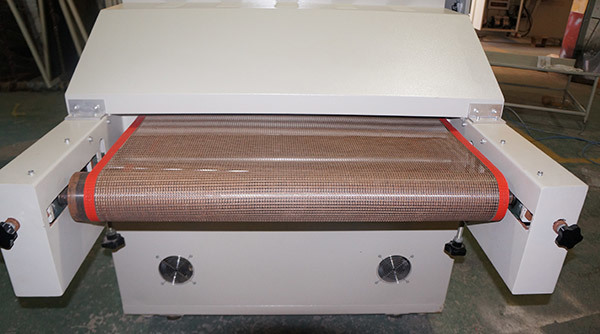

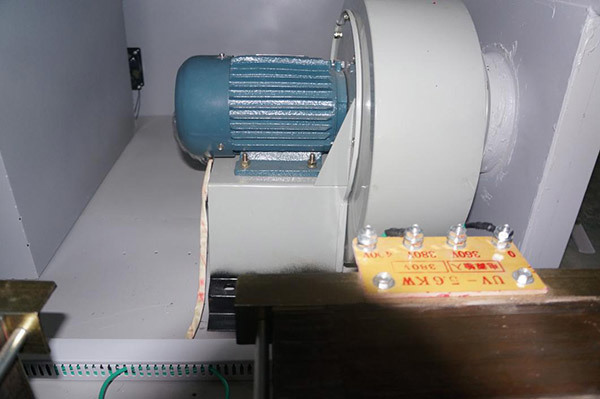

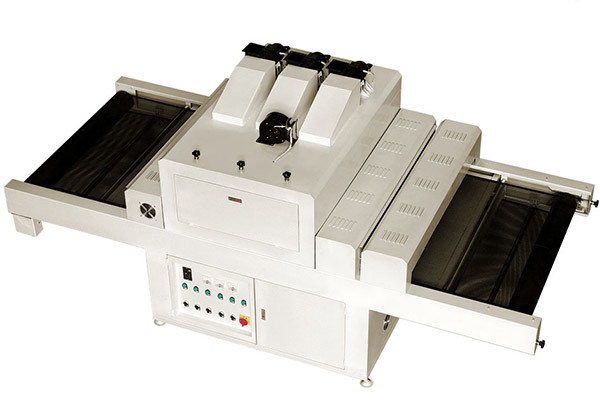

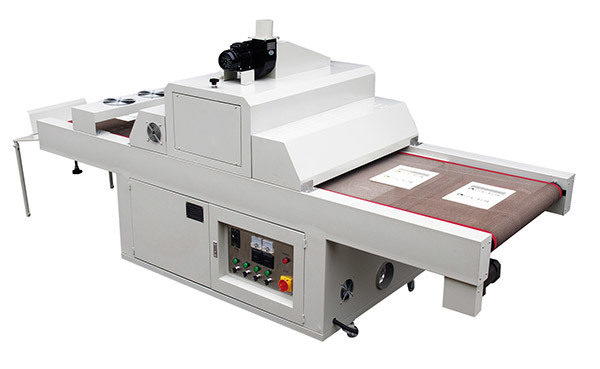

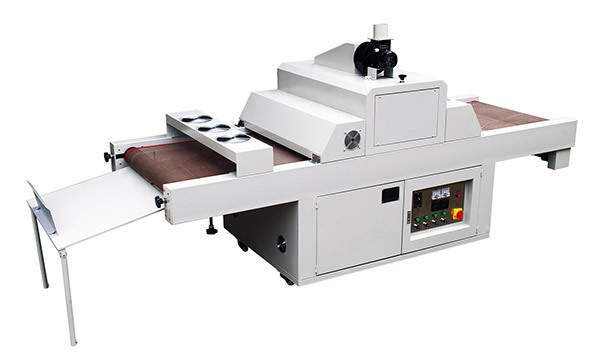

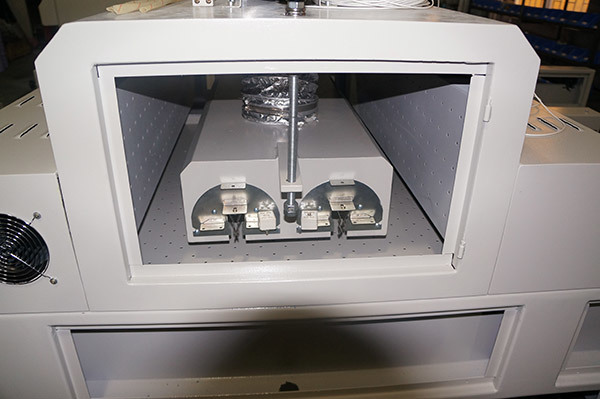

Details Image
