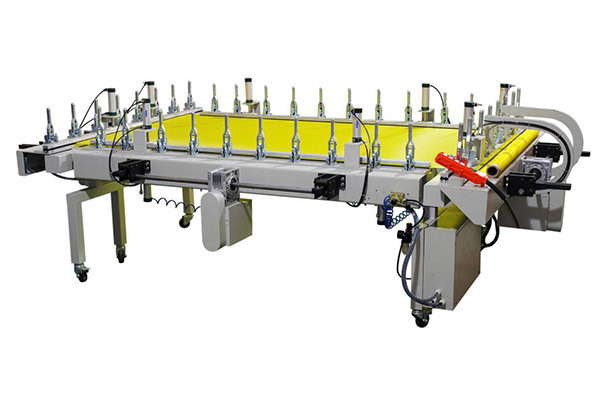

Silk Screen printing frame mesh stretching machine
Affiliate Category:
Keywords:
Other Equipment
Product Description
|
Mode |
YCES-1215 |
YCES-1520 |
YCES-1730 |
YCES-2040 |
|
Power supply |
220V/380V 50Hz |
220V/380V 50Hz |
220V/380V 50Hz |
220V/380V 50Hz |
|
Working Air Pressure |
Above 0.5Mpa |
Above 0.5Mpa |
Above 0.5Mpa |
Above 0.5Mpa |
|
Max frame size |
1200x1500mm |
1500x2000mm |
1700x3000mm |
2000mmx4000mm |
|
Max Tension |
50N |
50N |
50N |
50N |
|

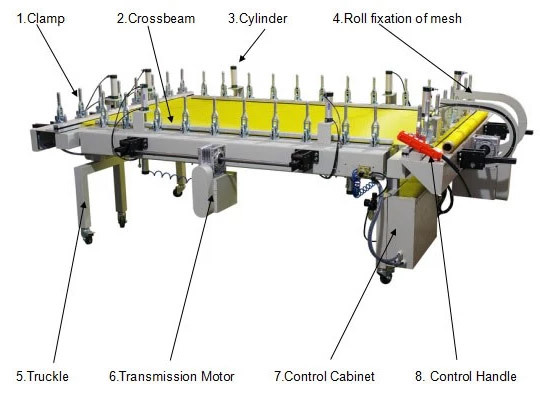

Screen frame support 2 Piece
put the screen frame on top of frame support,when machine start working,use the control handle to stand up the frame support can strecthing mesh
|
 |
 |
Crossbeam 4 piece
1. equiped with a pathway and skateboard ,four sides of crossbeam is an active type,automatically motor-driven and convenient contraction.
2. you can adjust the stretching area according to the size of the frame,effectively save the silk
|
|

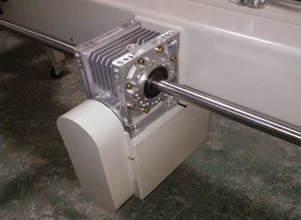

Transmission Motor 4 piece
Power control for four independent slow down motors distributed to stretcher and stretched symmetrically
|
 |
 |
Truckle 4 piece
The machine with two legs each side,easier to disassemabled and installed.
|
Packing & Delivery
|
Machine Size |
2500mm(L)*1500mm(W)*1000mm(D) |
1500mm(L)*2000mm(W)*1000mm(D) |
|
Weight |
580KG |
500KG |
|
Packaging Details |
The normal package is wooden box(Size: 3m*2.8m*1.2m). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
|
