Product Description
Product Description

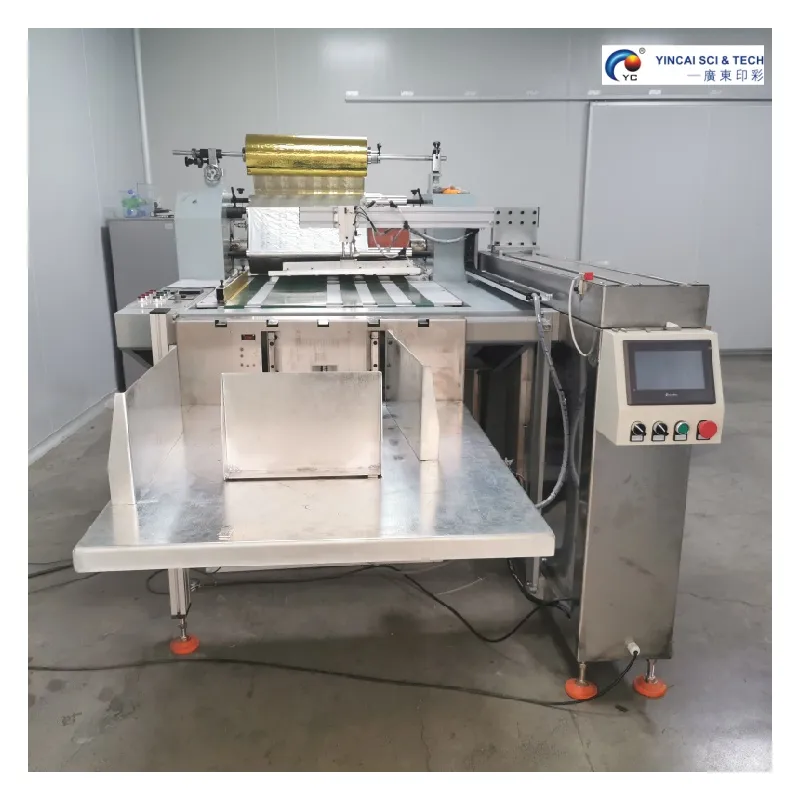

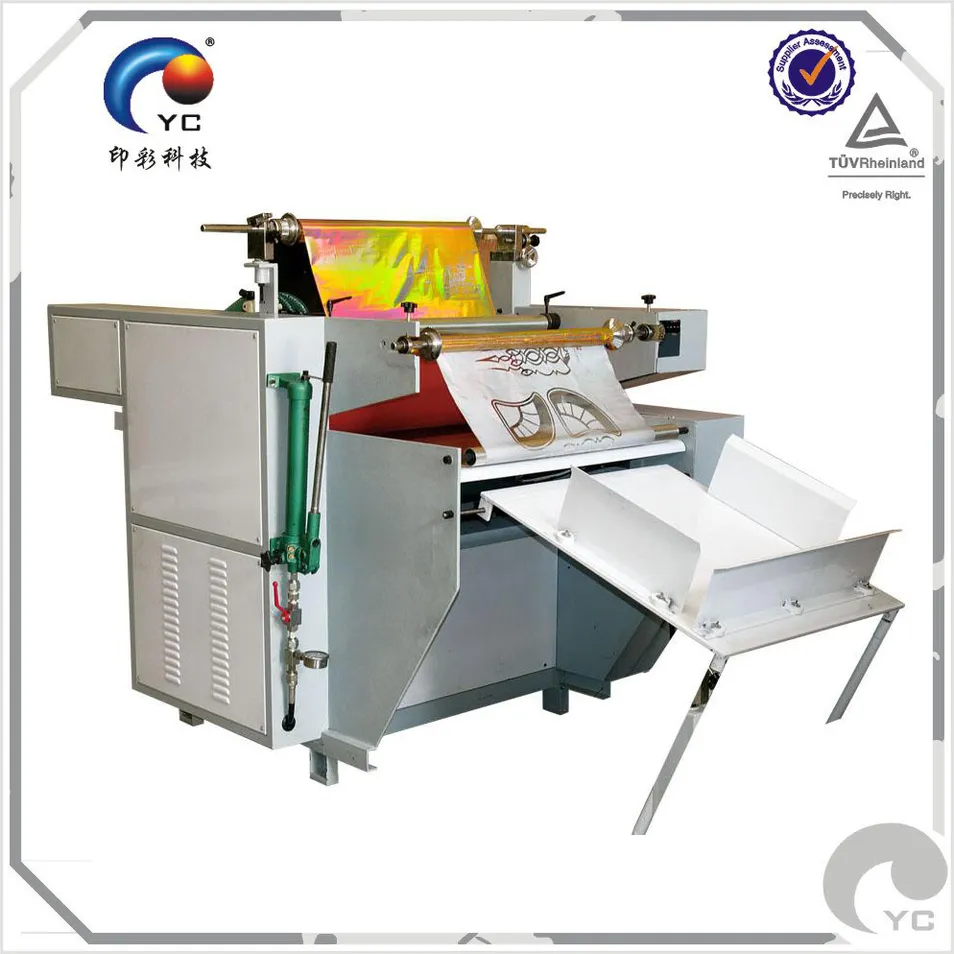

Hot Stamping Machine
High precision type YCHS hot stamping machine is a new product which was introduced of foreign advanced technology, and according to the situation of our country to develop by our own in recent years. This machine has advanced design and compact structure, it 's easy to operate. After hot stamping, the paper will be lucency, so it was widely used for hot stamping that bottle, helmet, sports equipment, etc., in modern this machine is a indispensable printing processing equipment. We can provide all line printing material and equipment for this process, match with LED cured technique, make this process easy, fast, and ECO-friendly.
The working principle and structure
The machine consists in a base,drive gear,rubber roll assembly, pressure governor, electrical devices and other components.
The working principle for paper gold stamping is that heating anodized aluminums and the material of gold stamping to certain temperature in the front pressure grinding rolls leads to hear pressing which makes the glue coating of anodized aluminums and the bottom oil of the material of glod stamping integrated,and auto-sending out by back pressure grinding rolls after pressing again by it,then winded-up by roll.
Parameter
Mode | AHS700 | HS700A | HS700B |
Width of roller | 700mm | 700mm | 700mm |
Temperature range | ~150 Celcius degree adjustable | ~150 Celcius degree adjustable | ~150 Celcius degree adjustable |
Transit Speed | 300 meters/hour | 300 meters/hour | 300 meters/hour |
Power supply | Three-phase 380V 50Hz | Three-phase 380V 50Hz | Three-phase 380V 50Hz |
Total power | 6KW | 6KW | 6KW |
Machine size | 3800x1320x1680mm | 2200x900x1680mm | 1200x900x1100mm |
Automatic Arm | 1mtr route | 1mtr route | 1mtr route |
Weight | 700KG | 500-600KG | 500-600KG |
